Female compression fittings give installers a clean and efficient approach for connecting pipes and tubing. They remove the need for solder or welded joints. This guide explains the function of female compression fittings, breaking down how the compression nut and ferrule produce a tight seal. It also points out their importance in both plumbing and HVAC applications.
3/8 Valve Adapter
Selecting high-quality pipe fittings can significantly reduce energy losses. That can reduce the risk of refrigerant or water leaks, which can create risks for the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, require robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is important for long-term system performance.
Across plumbing applications, PEX or PVC with compression fittings are often preferred for their ease of service and low heat exposure. In comparison, refrigeration lines require fittings that can withstand thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines serve these needs, supplying common sizes and parts such as ferrules and compression nuts.
Important Highlights
- Female compression fittings uses a nut-and-ferrule system to seal without soldering.
- Choosing the correct material—brass, copper, stainless, PVC, or PEX—limits corrosion and failure.
- Well-matched fittings help cut energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Fitting guide materials and suppliers like InstallationPartsSupply.com streamline part selection.
- Inspect ferrules and tighten per manufacturer torque to support a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings connect pipes and tubing without solder or welding. They are commonly used on copper, PEX, PVC, and stainless lines where heat or flame is best avoided. Many installers purchase parts from Installation Parts Supply to improve consistent quality and fit.
What Compression Fittings Are And How They Seal
A compression fitting uses a nut and a ferrule olive pressed against the pipe by the fitting body. As the nut tightens, it squeezes the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This construction helps answer the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings need to manage refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. For HVAC and plumbing fitting selection, selection depends on media, service temperature, and pressure ratings.
Systems such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing systems frequently rely on PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Brass, Copper, Stainless Steel, PVC, And PEX Materials
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass fittings and ferrules withstand wear and are common in many compression fittings. Stainless steel suits corrosive or high-pressure environments.
PEX compression works well in domestic water lines because it handles freeze-thaw cycles and is flexible. PVC is still a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Component Material | Typical Use | Benefits | Drawbacks |
|---|---|---|---|
| Copper | Cooling lines and drinking-water systems | Durable, conductive, and easy to solder | Higher cost, prone to mechanical damage |
| Brass Material | Ferrules, nuts, and compression fittings | Machinable and resistant to corrosion | Galvanic risk with dissimilar metals |
| Stainless steel | Corrosive or high-pressure systems | Excellent durability with corrosion resistance | Costlier with tougher fabrication |
| PEX Pipe | Residential hot/cold water | Easy to route and tolerant of freezing conditions | Requires compatible PEX compression fittings |
| PVC | Drainage and low-pressure cooling circuits | Affordable and easy to work with | Limited in hot or pressurized applications |
Why Proper Fitting Selection Affects Energy Efficiency And Leak Prevention
Using the correct fitting helps reduce leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Tight seals and matched materials cut maintenance and lower energy waste.
Matching the right ferrule type and matching copper fittings or PEX compression hardware helps avoid galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.

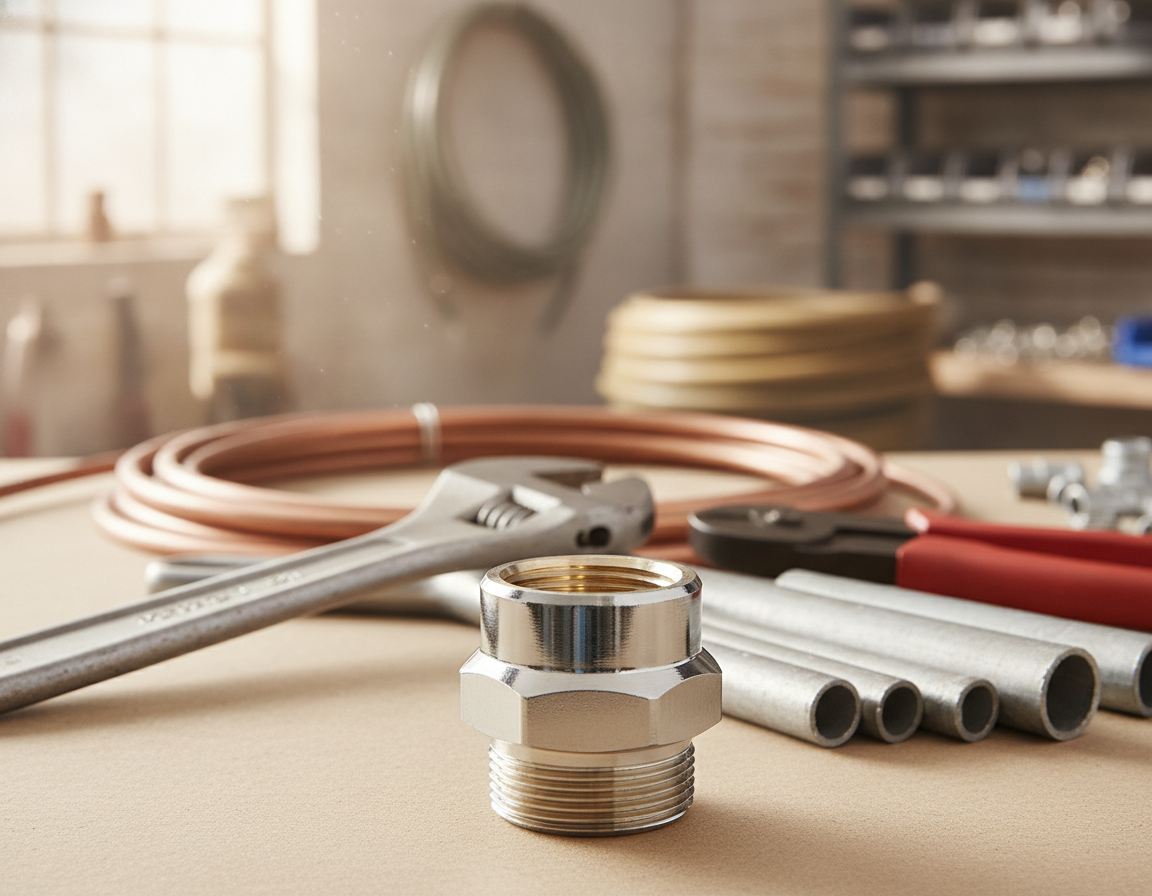

Female Compression Fittings
A female compression fitting secures a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This fitting creates tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Female Compression Fitting Definition And Configurations
A standard assembly contains a female compression nut, a ferrule olive, and the fitting body. The nut screws onto the fitting body and compresses the ferrule to grip the tube. Many systems use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Compatible Materials And Uses
Brass and copper are typical choices for refrigerant fittings and hot-water lines due to their ability to handle thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PEX and PVC are often used in condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Typical Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
In standard plumbing work, female compression fittings link stops, valves, and supply lines without solder. In refrigeration and HVAC work, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Gas lines and instrumentation often use compression parts for leak-tight, serviceable connections.
Female Vs Male Compression Fittings And Adapters
Female fittings accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter enables technicians interface service valves and gauges to the system. Choosing matched materials prevents galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Assembly Part | Usual Material | Typical Use | Service Note |
|---|---|---|---|
| Female Compression Nut | Brass | Water supply lines and valve fittings | Replace if rounded or cracked |
| Ferrule sleeve | Brass and stainless options | Creates seal on copper, brass, some PEX | Often should be replaced during service |
| Main fitting body | Machined brass or stainless | Refrigerant fittings, instrumentation | Match material to refrigerant and pressure rating |
| Small male compression fitting | Brass or copper | Male connection for female ports and small lines | Check thread form and sealing seat |
| 3/8 service valve adapter | Machined brass | Service-gauge interfaces and manifold hoses | Match seals to refrigerant fittings |
| Installation Parts Supply | Multiple materials | Supplier for matched fitting components | Use compatible replacement parts for durability |
Compression Fitting Types, Sizes, And Adapters For Plumbing And HVAC
This part explains the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Technicians rely on couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. The right combination of parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and unions allow the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are preferred for components that need to be disconnected without disrupting the line. For small runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting may connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, supporting quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Confirm that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. You should also confirm the system’s maximum pressure and temperature ratings before making a final selection.
Parts like the Max Adaptor and 3/8 Valve Adapter help with connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. During HVAC diagnostics, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Selecting the material means balancing between durability and corrosion resistance. Stainless steel is durable and resistant to corrosion, making it suitable for harsh environments. Brass and copper work well in refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PEX and PVC suit low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental performance of fittings relates to leak prevention and recyclability. Properly fitted metal fittings reduce refrigerant emissions and can be recycled at the end of their life. Sourcing reliable parts from reputable distributors reduces failures and minimizes long-term environmental risk.
The table below helps compare between common options by application, pressure, temperature, and reusability.
| Fitting Style | Typical Use | Approximate Max Pressure | Operating Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Brass compression coupling | Instrumentation, small water lines, refrigerant | Up to 3,000 psi varies by spec | Approximately -65°F to 250°F | Limited reuse if the ferrule remains intact |
| Brass or stainless compression union | Maintenance access and serviceable joints | Up to about 2,500 psi | Minus 65°F to 300°F | Good reuse potential for service access |
| 3/8-inch compression coupling | Refrigerant lines, instrumentation, small plumbing runs | System dependent; confirm rating | Review material specs before HVAC service | Some reuse possible, but service replacement is common |
| 3 8 Male Compression Fitting | Adapter to service valves and gauges | Refrigerant-rated when made and specified correctly | Appropriate for typical HVAC temperature cycles | Reusable when not damaged |
| Max Adaptor brass/stainless | Gauge and valve interface coupling | Designed for higher service-tool demands | Handles typical HVAC thermal cycling | Built for repeated connection and removal |
| PVC and PEX fittings | Condensate and low-pressure water | Low pressure only; not for refrigerant service | 32°F to 140°F typical | Reusable only in some applications with UV limits |
When ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Ensure that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Correct compression fitting installation begins with clean, square pipe ends and the right parts. On HVAC refrigerant circuits, use copper and brass. For low-pressure condensate or chilled water, PVC or PEX is best. Always refer to manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How compression fittings are installed
1. Cut and deburr the tube to a square face. 2. Slide the nut and ferrule onto the pipe in that order. 3. For soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Tools and techniques
Apply the two-wrench technique to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Many installers snug by hand, then add a limited number of wrench turns.
When to use pipe inserts
Pipe inserts are commonly required for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Avoid inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common mistakes and ferrule removal
Avoid under-tightening and over-tightening. Loose fittings leak; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
How to remove a ferrule
Shut off the supply and relieve pressure first. Grip the fitting body with one wrench while loosening the nut with a second. Remove the compression nut and pull out the ferrule. If the ferrule is stuck, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
When working on small 3/8″ valve connections, prepare the tubing the same way and follow the two-wrench technique. Many 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Inspection and maintenance
When pressure is restored, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, mainly on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | Required Action | Tip |
|---|---|---|
| Preparation | Square-cut, deburr, and clean the pipe | Use proper cutting and deburring tools |
| Fit-Up | Install the nut and ferrule before inserting the tube | Install pipe inserts in soft plastic tubing |
| Secure Joint | Hand-tighten, then use two wrenches | Follow torque guidance from manufacturer |
| Test | Pressurize the system and look for weeps | Check for small leaks and tighten slightly when appropriate |
| Service | Inspect regularly, replace ferrules when disassembled | Stock spares from Installation Parts Supply for fast repairs |
Closing Notes
Choosing the right compression fitting is critical for plumbing and HVAC work. The selected material, whether brass, copper, stainless steel, PVC, or PEX, must match the service type. This helps provide reliability and extends system life. Quality parts and careful installation can lower energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings offer a leak-free, solder-free solution. They include a nut, ferrule, and body. To create a reliable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These methods guarantee long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it is important to match size and pressure ratings to the task. High-quality components from reputable suppliers matter. A guide from Installation Parts Supply can support in finding compatible fittings and adapters. Regular maintenance and proper selection preserve system efficiency and compliance.
In closing, dedicating time to material selection and correct assembly is worthwhile. This ensures durable, leak-free connections. It contributes to optimal performance, fewer repairs, and less environmental harm.
